DRYCORE™ DS5
Container Solutions
MODEL - DS5
The DS5 unit has 5 separate compartments ideally suited for grains, nuts and other granular produce. Each compartment has a capacity of 5m³ with a top fill hatch and a side door for dispensing cool dried goods. The D5 also provides conveyor and automation possibilities to streamline production.
optimised for grains, nuts & legumes

granular produce

Nuts & seeds

legumes
DRYCORE™ DS5
GRANULARS AND COOL DRYING
Dust

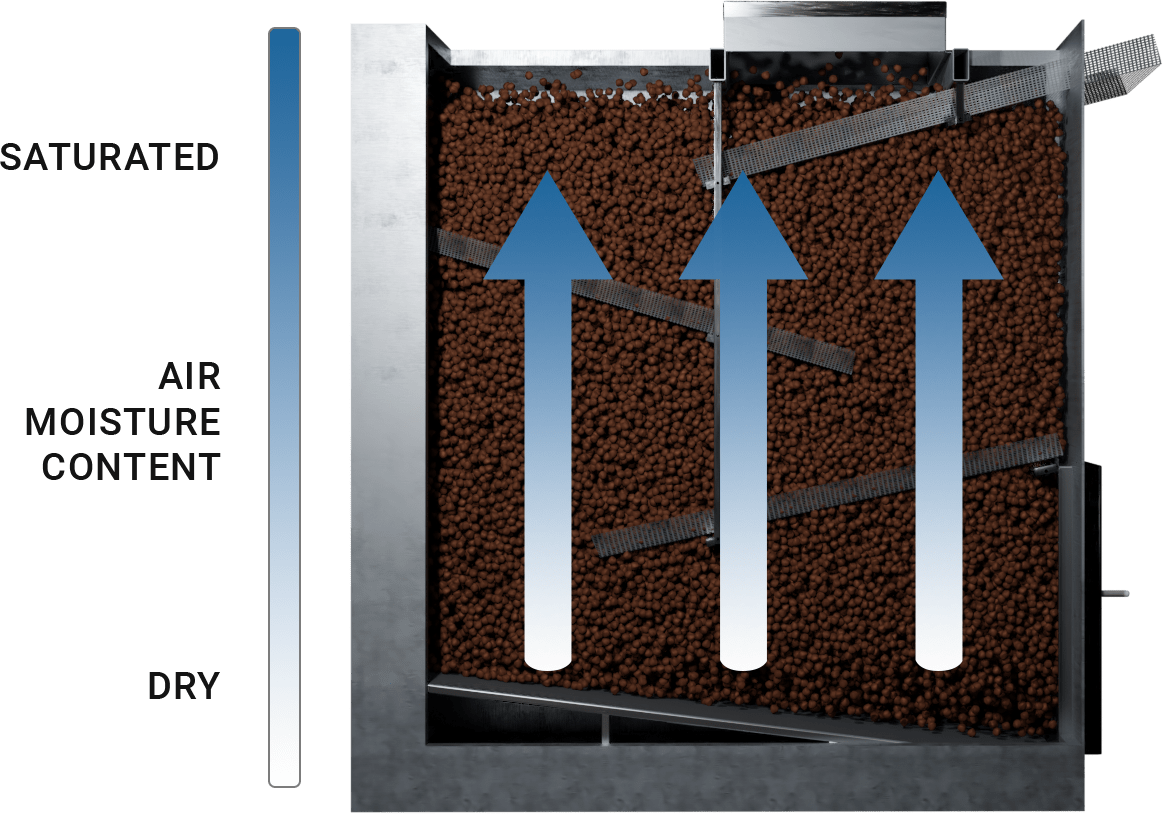

Grains and other similar commodities are dried by purging air from the environment
through a silo filled with grain or any similar product. Traditionally, most of these systems
utilise large fans to introduce outside air through the bottom grid of the silo into the
stacked product and thereby provide the necessary drying. Due to the high-velocity
air intake through these fans, dust is also entrained into the product causing a distinct
decrease in quality.
Moisture
The conventional silo drying method is also open to the environment, and therefore
severely affected by inclement weather. Silo drying in humid environments can also
cause spoilage of the product. This method is an uncontrolled process with temperature
and humidity fluctuations which may cause inconsistent drying and negatively impact
the final product.
Heat
To eliminate the effects of fluctuating weather and accelerate drying, heat is usually
introduced into the process. With heating, there is the risk of stress fractures in grain
products. High-temperature drying is also known to cause enzymatic browning, which
causes unpleasant odours and flavours in for example nuts. Heat can contribute to
discolouring and cell damage in certain products which should be avoided at all cost,
especially for the export market. Another adverse effect of high-temperature drying is the
compromising of the nutritional content. Fast, high-temperature drying of macadamia nuts
may cause early separation of the nut from the shell, which may result in bruising or even
breaking of the nuts during handling and processing. For this reason, it is recommended in
the industry that nuts such as macadamias rather be “cured” than dried.
DRYCORE™ DS5
product features

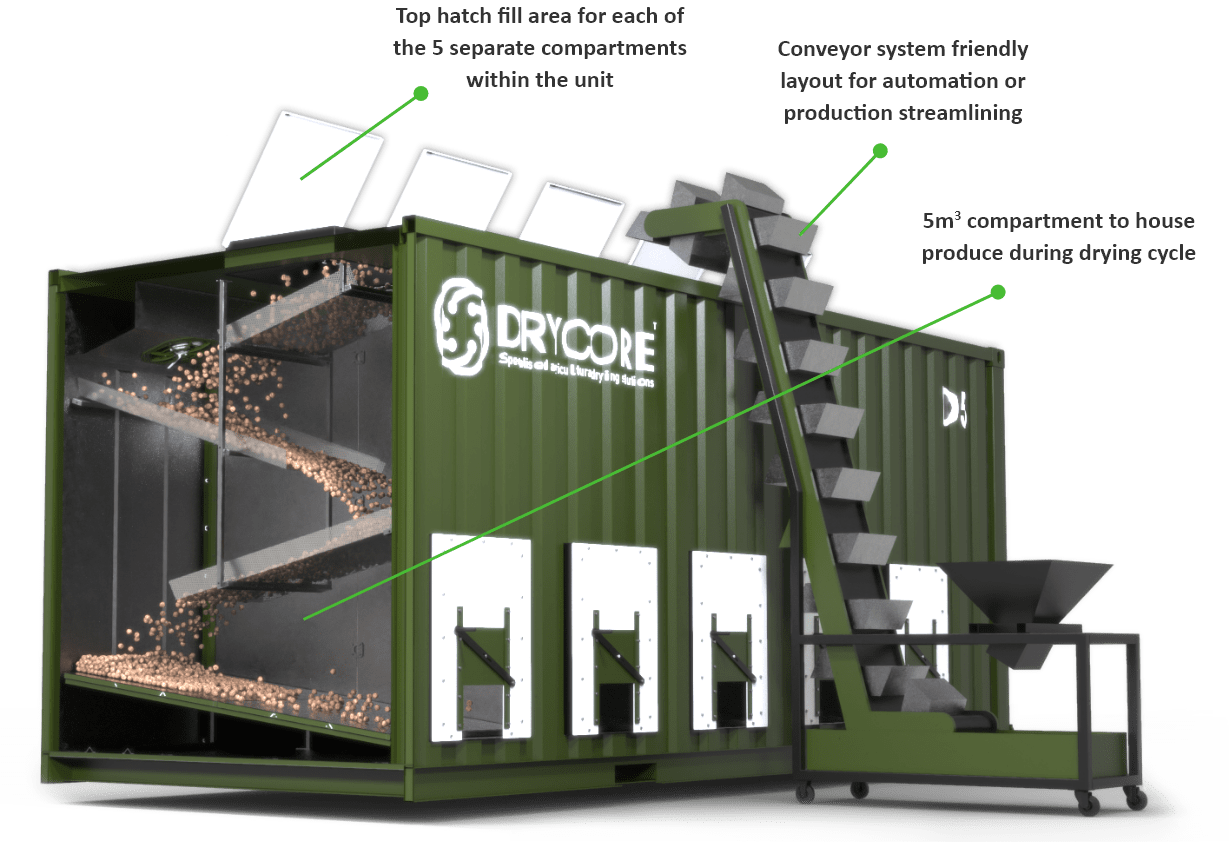

The DS5 unit has 5 separate compartments ideally suited for
grains, nuts and other granular produce, each compartment has a
capacity of 5m³ with a top fill hatch and a side door for dispensing
cool dried goods. The D5 also provides conveyor and automation
possibilities to streamline production.
ENQUIRE
6 Meter container from one to five compartments
12 Meter container from one to ten compartments
1 - 5 internal
compartments

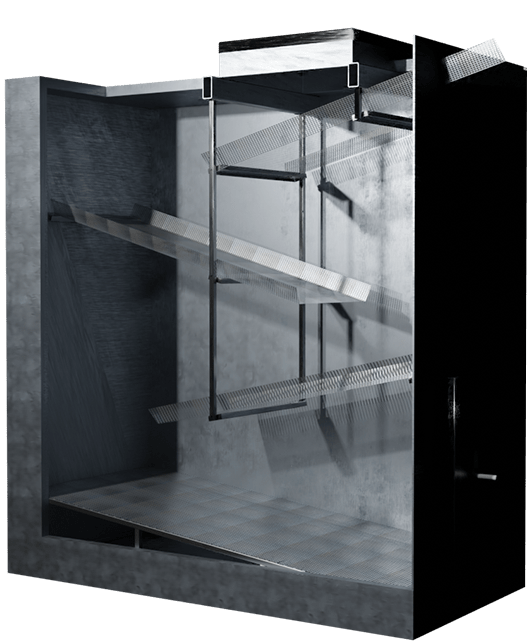

empty compartment

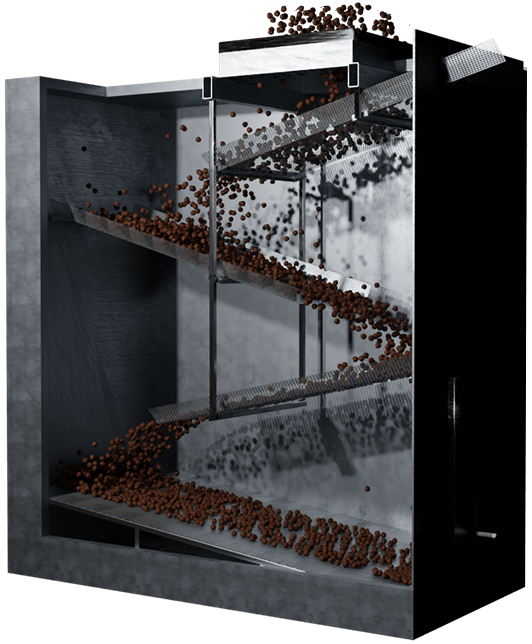

filling up

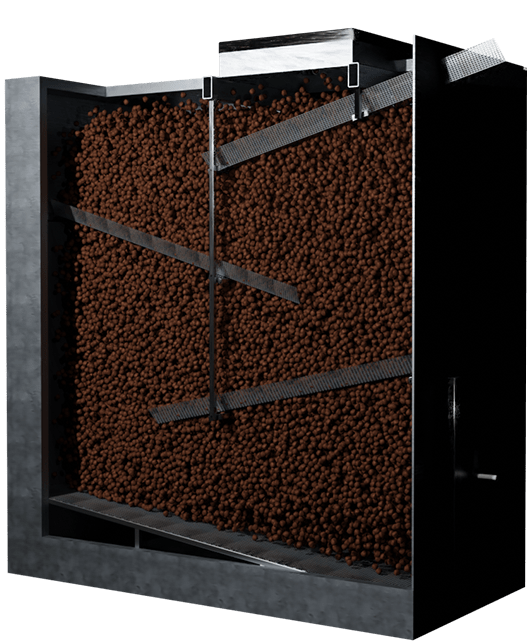

ready for drying

DRYCORE™ DS5
internal drying cycles
The 5 separate compartments in the D5 unit allow for various drying cycles and different products to be dried at the same time, in the same
system. Each compartment can be filled independently and therefore have multiple cycles running simultaneously. Tandem cycles can help
to streamline production, for example having each compartment run on its own 7-day cycle where compartment 1 is emptied on Mondays, compartment 2 on Tuesdays, etc.
